Multiswitch 9/32 BAFF Digital HD Sat Distributor 9-32 Multiswitch 2 Satellite 32 Receiver FullHD HDTV 3D 32x Output

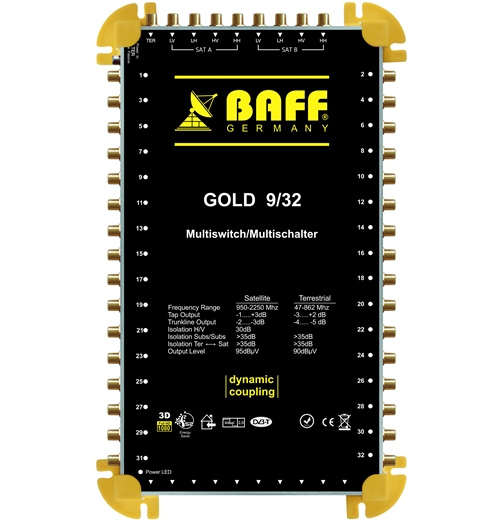

BAFF Gold 9/32 Base Unit Multiswitch

2 satellites and 32 participants

HDTV / Full HD / 3D

Golden F-connectors

Technical Specifications

4 + 4 + 1 inputs (active)

32 outputs

Power saving function

Quattro LNB (without switch) compatible

Full HD 1080 and 3D compatible

with power supply

Satellite / Terrestrial inputs

8 / 1

Outputs

32

SAT frequency range

950-2250 MHz

Terrestrial frequency range

47-862 MHz

Tap output Sat.

0…+3dB

Tap output Ter.

-2…+2dB

Trunkline output Sat.

-1…-2 dB

Trunkline Output Terrestrial

-3…-4 dB

Maximum SAT Output Level (IMA3)

95 dBµV

Maximum Terrestrial Output Level (IMA3)

90 dBµV

Decoupling Terrestrial Input <—-> SAT Input

35 dB

Cross Polarization H/V Decoupling

30 dB

Decoupling Subscriber Stand to SAT

>35 dB

Decoupling Subscriber Stand to Terrestrial

>35 dB

Power Input V/A

16 V DC/2 A

Power Input Connector Type

RCA Male

LNB Current

1500 mA

Diseqc Command Support

Diseqc 2.0
