Multiswitch 9/16 BAFF Cascade Digital HD Sat Distributor 9-16 Cascadable Multiswitch 2 Satellite 16 Receiver Expandable FullHD HDTV 3D 16x Output

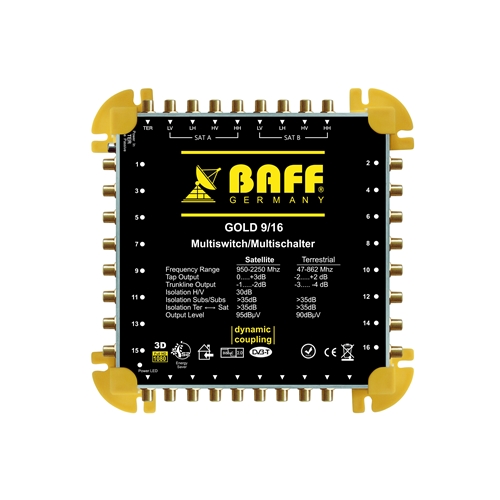

BAFF Gold 9/16 Cascade Multiswitch

2 satellites and 16 participants

HDTV / Full HD / 3D

Gold F-connectors

Technical specifications

4 + 4 + 1 inputs (active)

16 outputs

Power saving function

Quattro LNB (without switch) compatible

Full HD 1080 and 3D compatible

No power supply required

Satellite / Terrestrial inputs

8 / 1

Outputs

16

SAT / Terrestrial trunk line outputs

8 / 1

SAT frequency range

950-2250 MHz

Terrestrial frequency range

47-862 MHz

Tap output SAT

0…+3dB

Tap Output Terrestrial

-2…+2dB

Trunkline Output Satellite

-1…-2dB

Trunkline Output Terrestrial

-3…-4dB

Output Level Satellite Max. (IMA3)

95 dBµV

Terr. Output Level Max. (IMA3)

90 dBµV

Decoupling Terr. Input <—-> SAT Input

35 dB

Decoupling Cross Polarization H/V

30 dB

Decoupling Subscriber Stand to SAT

>35 dB

Decoupling Subscriber Stand to Terr.

>35 dB

Power Input V/A

16V DC/2A

Power Input Connector Type

RCA Male

LNB Current

1500 mA

Diseqc Command Support

Diseqc 2.0
